Description
Fast, powerful and reliable – for extreme conditions

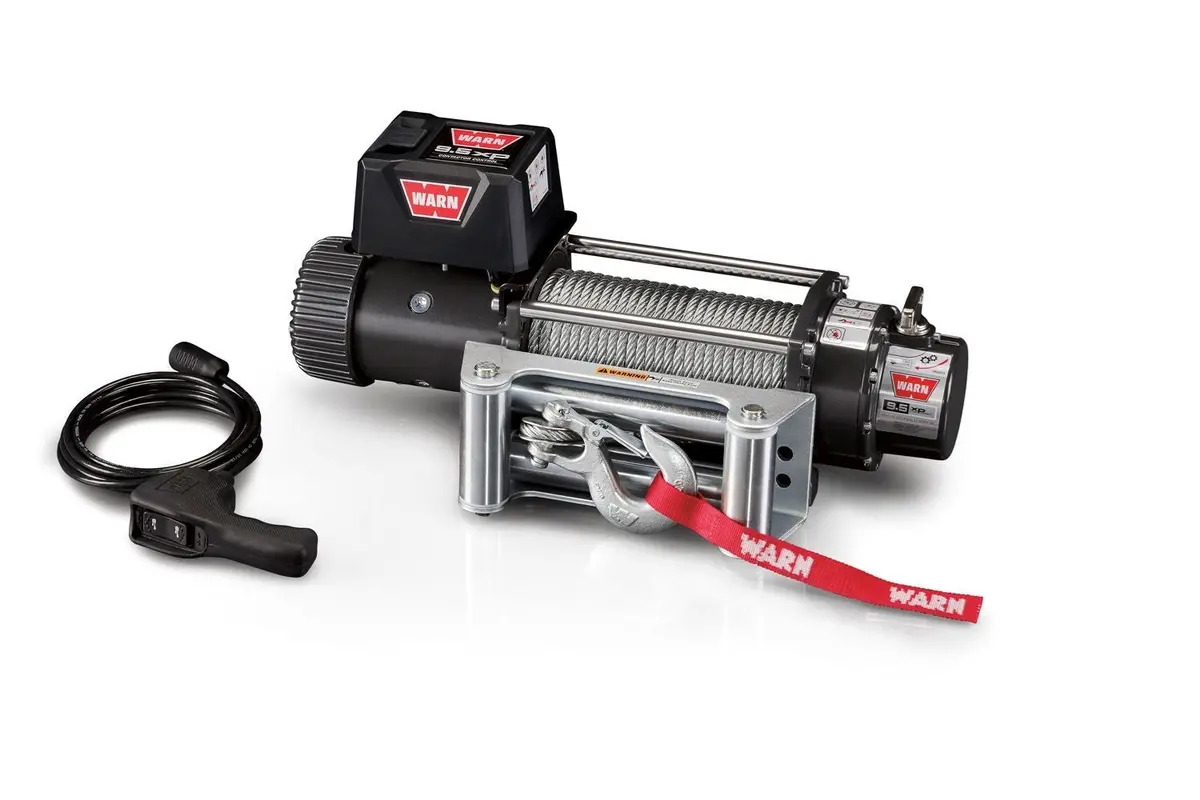

The 9.5xp Extreme Performance winch is designed to offer the highest performance in the harshest conditions. From its fast line speeds and strong 4,310 kg pull rating, to its extreme-duty sealing and contactor control, the 9.5xp is the winch you want when the trail gets tough.
SPECIFICATIONS:
- Part number: 9500XP-68500
- Rated line pull: 9,500 lbs., (4310 kgs.) single-line
- Motor: 12V 6 hp (4.48kw), High output parallel series wound
- Electrical controls: Contactor
- Remote controls: Remote switch, 12′ (3.7m) lead and
- Gear train: 3-stage planetary
- Gear ratio: 156:1
- Clutch (free spooling): Sliding ring gear
- Brake: Automatic direct drive cone
- Rope: Steel – 100′, 5/16″ diameter (30m, 8mm diam.)
- Fairlead: roller fairlead
- Recommended battery: 650 CCA minimum for winching
- Battery leads: 2 gauge, 72″ (1.83m)
- Finish: High-gloss powder coat over primer undercoating
- Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
- Weight: 87 lbs. (39.5 kgs)
Dimensions 22.7″ L. x 6.3″ D. x 7.7″ H. (577mm L. x 160mm D. x 196mm H.)
Mounting Bolt Pattern 10.0″ x 4.5″(254mm x 114.3mm)
